NOW WE CAN DO SOME CASTING

    So now we can start castings. I'm always excited about new molds. I've been working on these patterns for months now so finally we can start pouring and make dozens of them if we want.

Durango rounhouse construction.

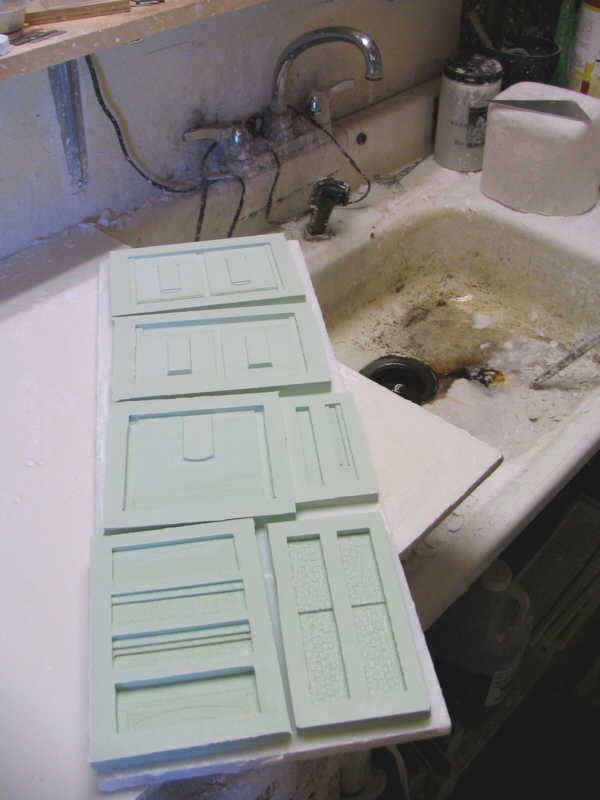

Durango rounhouse. Mold sink. Don't do this in the kitchen sink. Not if you want your wife to ever talk to you again. I've plumbed in an old sink and have a trap underneath it to catch all the plaster chunks and yuk.

Durango rounhouse construction.

Here's the trap. About once a year it needs to be cleaned out. One of those dirtiest jobs you see on TV.

Durango rounhouse construction.

Close-up of a four pocket mold. These are for Gunnison's front portal.

Durango rounhouse construction.

I've just poured the Hydrocal in these molds and tapped them vigorously to help remove any trapped air bubbles. In a moment they will begin to harden.

Durango rounhouse construction.

Before the Hydrocal gets too hard the backs are scraped smooth. It must be done gently on the HS II as it is much softer than the 3110 rubber I'm used to.

Durango rounhouse construction.

Now we let them set up.

Durango rounhouse construction.

In 15-20 minutes the castings are hard enough to remove from the molds.

Durango rounhouse construction.

The castings are gently removed from the molds.

Durango rounhouse construction.

The molds are rinsed off and the process can start one again.

Durango rounhouse construction.

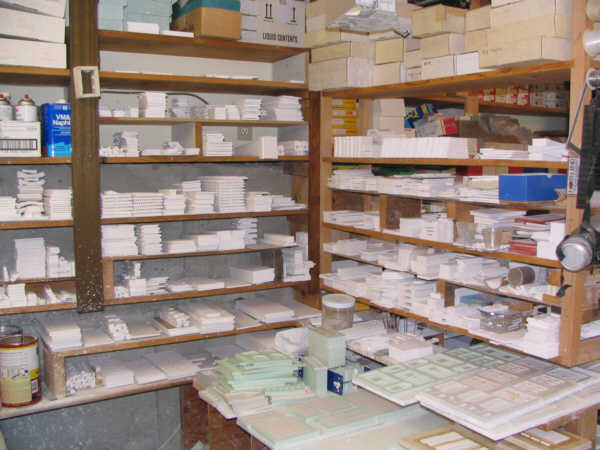

All that HO scale stuff looks so small! Where the heck am I going to stack the new castings? Somethings got to give.

Durango rounhouse construction.

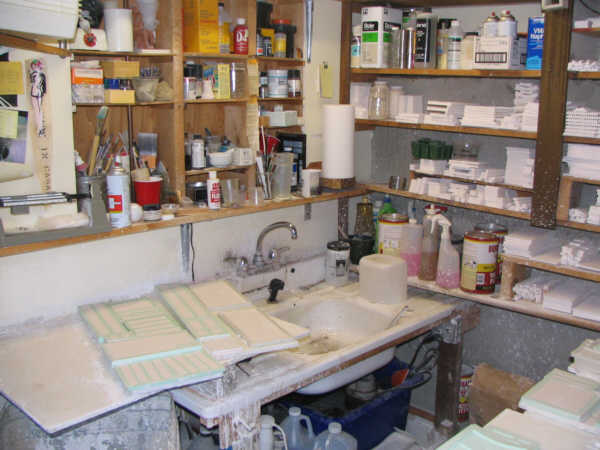

The casting sink corner.
